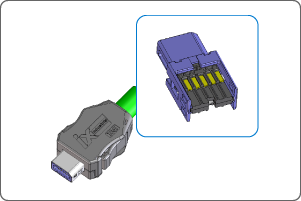

Soldering plug - Plug (IEC standard connector)

A miniaturized new standard connector for industrial applications, robot

The plug cover supports a wide cable size from 22 to 28 AWG wire, φ1.55mm.

Soldering plugs (IEC standard connector)

Part NO.
Code NO.
Specification Shape Data Sheet
IX40G-A-10S-CV(7.0)
CL251-0022-0-00
Soldering plug Type A
Gold plated 0.2μm
A miniaturized new standard connector for industrial applications, robot
Drawing (2D)
3D Model (IGESSTEP)
Specification Sheet
IX40G-A-10S-CV(7.0)(01)
CL251-0022-0-01
Soldering plug Type A
Palladium-Nickel plated 0.75μm + Gold plated 0.05μm
A miniaturized new standard connector for industrial applications, robot
Drawing (2D)
3D Model (IGESSTEP)
Specification Sheet
IX40G-B-10S-CV(7.0)
CL251-0032-0-00
Soldering plug Type B
Gold plated 0.2μm
A miniaturized new standard connector for industrial applications, robot
Drawing (2D)
3D Model (IGESSTEP)
Specification Sheet
IX40G-B-10S-CV(7.0)(01)
CL251-0032-0-01
Soldering plug Type B
Palladium-Nickel plated 0.75μm + Gold plated 0.05μm
A miniaturized new standard connector for industrial applications, robot
Drawing (2D)
3D Model (IGESSTEP)
Specification Sheet
