High-Temperature (-40 to 125℃), High-Vibration Automotive-Grade Connectors
ZE05/ZE064W Series for Automotive Applications

ZE05 Series Lineup: Expanded lineup including CPA-equipped and in-line configurations in 2026.

ZE05 Series Product Image ZE05
Internal Automotive Connections
  ZE05 (Hybrid) Series Product Image ZE05 (Hybrid)
Combined
Signal and Power ZE064W Series Product Image ZE064W
For External Applications
Compact, Waterproof

As HEVs and EVs continue to evolve, increasing electronic control and component miniaturization are driving the need for compact, high-reliability connectors in automotive systems.

Designed for Automotive Environments
- Supports applications including ECUs, converters, inverters, and battery systems
- Maintains reliable electrical continuity in −40 to +125℃ environments
- Performs consistently under engine vibration and harsh operating conditions

Stable Electrical Performance
- Tin-plated contacts maintain reliable conductivity under temperature and vibration stress
- Dual spring, three-point contact design ensures stable contact under vibration

Flexible Design Integration
- ZE05 Hybrid Type combines signal and power in a single connector
- Reduces PCB space, component count, and wiring complexity
- Compatible with SMT mounting for improved assembly efficiency

For internal applications, the ZE05 is recommended, while the ZE064W is ideal for external waterproof connection points.

ZE Series Recommended Connection Method

Product Specifications

Standard Characteristics

Item ZE05 ZE064W
Waterproof Type		 ZE05
Hybrid Type
Rated Current 5A (Single pin) / 2A (All pins) Signal: 2A / Power: 10A
Rated Voltage 60V AC / DC
Withstanding Voltage 1,000V AC (For 1 min.)
Insulation Resistance 100MΩ min. (500V DC)
Operating Temperature -40℃～+125℃
Mating Durability 30 times
Mounting Method Through Hole Reflow (THR), SMT Panel-mount SMT
Applicable Cable Size

AWG 24～26
(0.13～0.22mm²)

AWG 22
(0.35mm²)

AWG 20～22
(0.3～0.5mm²)

 AWG 20～22
(0.3～0.5mm²)
Outer dia. Ø1.4～1.7mm

Signal:

AWG 24～26 (0.13～0.22mm²)
AWG 20～22 (0.3～0.5mm²)

Power: AWG 16～18 (0.75～1.25mm²)
Main Applications ECUs, Batteries, Inverters, Internal automotive equipment, and External applications (Waterproof Type) Headlamps, Navigation systems, IVI units, and Control units requiring space-saving designs
Series for Automotive Contact Us

Key Features

High-Temperature Operation (Up to 125℃)

We have conducted rigorous tests required for automotive products, including thermal shock testing (-40 to 125℃ for 3,000 cycles), and have verified that there are no issues. It is designed to withstand temperature conditions such as those found in engine compartments.

Stable Contact Under Vibration

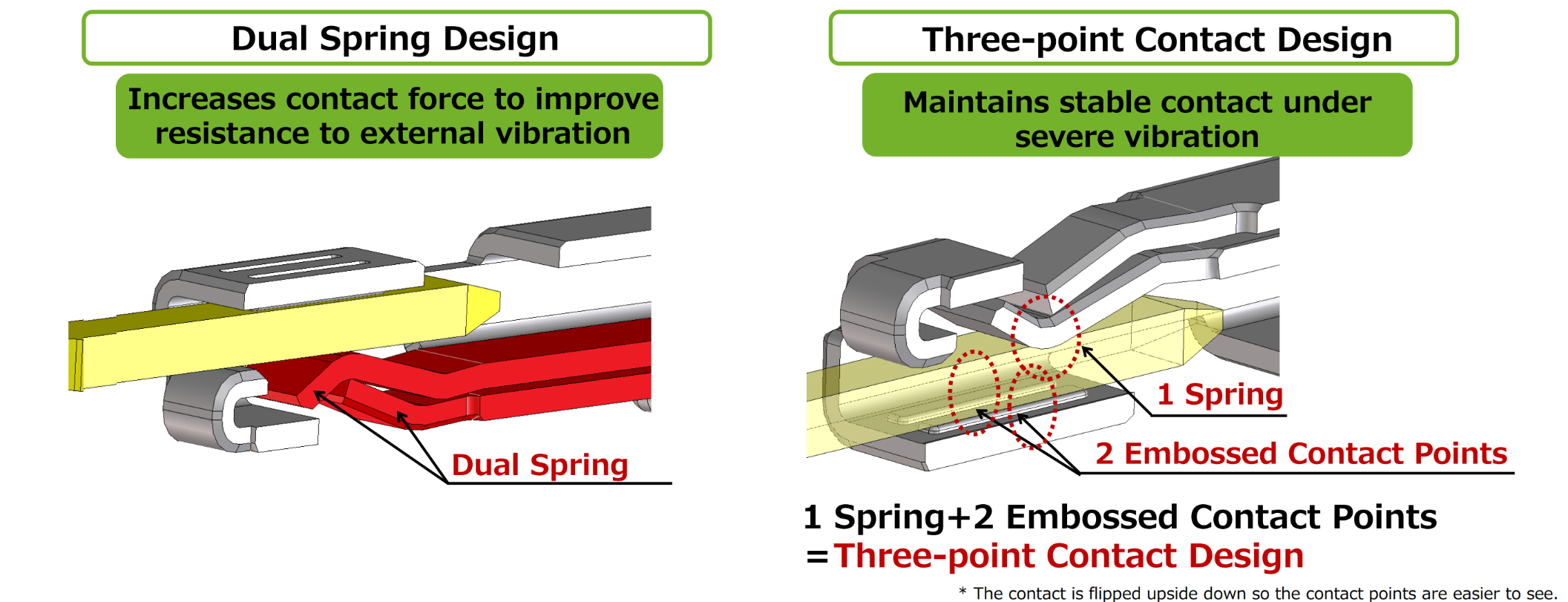

Dual spring and three-point contact design maintain reliable electrical continuity under engine vibration and driving conditions.
Combined vibration testing at 125℃ for 300 hours confirmed stable contact resistance.


CPA Option Prevents Incomplete Mating (ZE05C)

CPA-equipped ZE05C structurally prevents incomplete mating, improving assembly reliability.

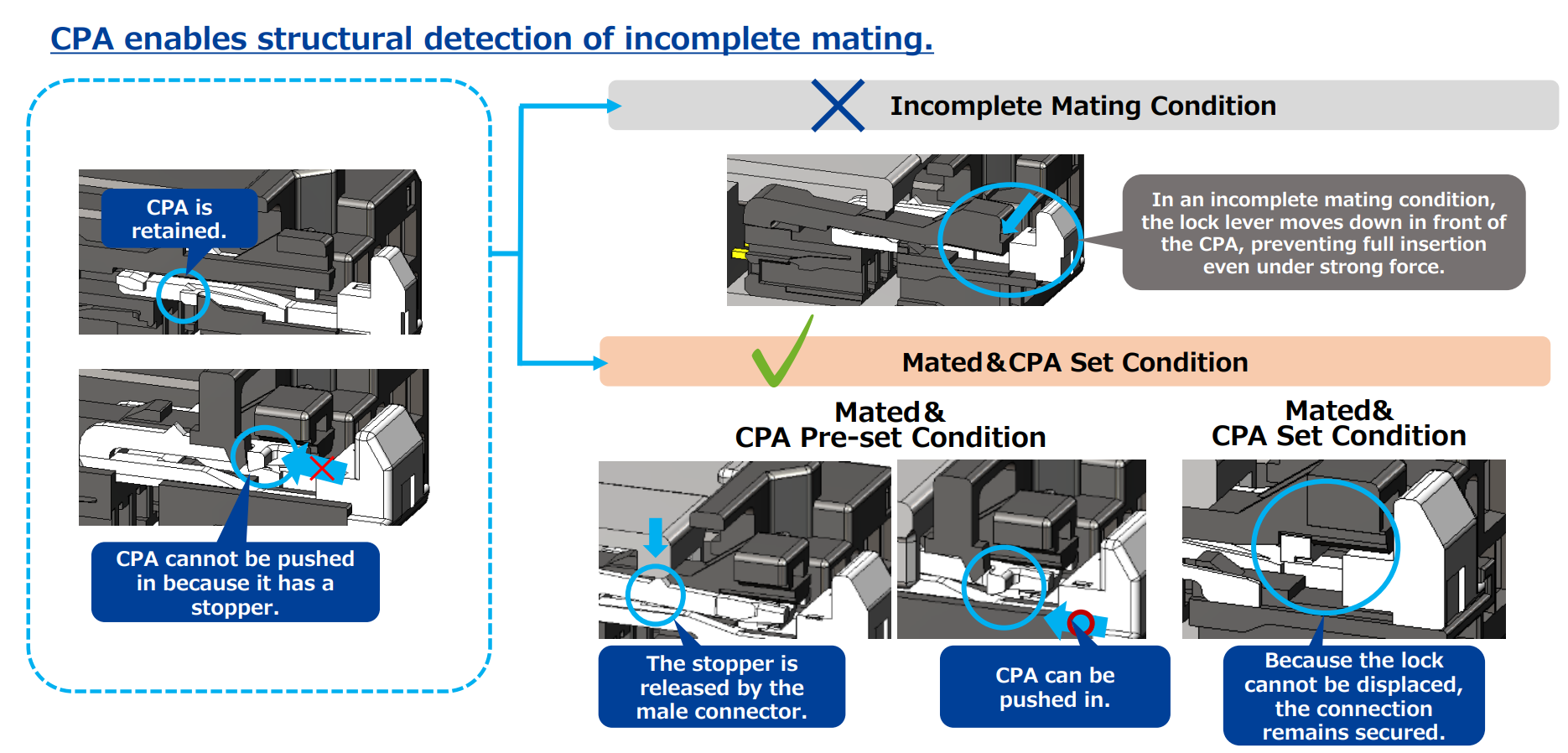

Image of CPA on ZE05 Series Connector Diagram showing how CPA detects incomplete mating. Illustrates the operation of CPA and lock lever in three states: un-mated, incompletely mated, and fully mated.

Supports Micro-Coax Wires (AWG 24–26 / 0.13–0.22 mm²)

Enables easier wiring, space savings, and overall cable weight reduction.
Contact options are available as:
ZE05-2426SCF for AWG 24–26 (0.13–0.22 mm²)
ZE05-2022SCF for AWG 20–22 (0.3–0.5 mm²)

Waterproof Design Meets IP67/IP69K Standards (ZE064W Series Only)

By combining the ZE05 Series connectors for internal connections with compact waterproof interface connectors, they can be utilized in a wide range of applications where waterproof performance is required.


Signal + Power in a Single Connector (ZE05 Hybrid)

Supports combined signal (up to 2A) and power (up to 10A) in a single connector.
Design Advantage:
Consolidates signal and power connections—previously mounted separately—into one connector.

Design Benefits:
-Reduces PCB mounting area
-Decreases component count
-Simplifies wiring and assembly processes
-Improves overall design efficiency

Applications (Use Case)

Image Automotive Systems (ECUs, inverters, DC/DC converters, battery systems)
Image Industrial, Agricultural and Construction Equipment

ZE05 Series Handling Instructions

ZE05 Series for Automotive and Industrial Applications

ZE05 is a highly reliable connector offering high temperature resistance (operating temperature range: −40℃ to +125℃) and excellent vibration resistance.
Its high versatility allows it to be used in a wide range of connection points and applications.

ZE05 Series Product Image

PCB Mounting

Introduction to PCB-side mounting procedures (reflow soldering)

Harness Assembly

Introduction to the correct harness-side assembly procedures

Repair Operation

Introduction to correct repair procedures for crimped wires

Series for Automotive Contact Us
Introduction to Hirose Electric's Automotive Connector Initiatives

※In cases where the application will demand a high level of reliability, such as automotive,
please contact a company representative for further information.
