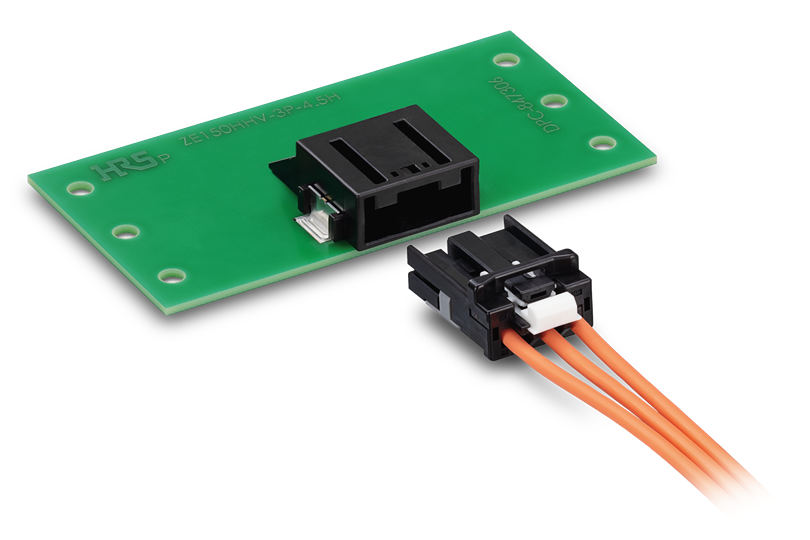

ZE150HV Series Recommended

1.5 Size / 4.5ｍｍ Pitch High-Voltage, Wire to Board Connector


Features

1.5 Size / 4.5ｍｍ Pitch
High-Voltage, Wire to Board Connector

1　High Voltage
　　-Rated Voltage:  1,000V, Withstand Voltage: 3,000V
2　Rated Current: 10A (All pins powered)
3　Operating Temperature up to 125°C
4　High Vibration Resistance with Optimized Contact Design
5　CPA* Equipped
　　* Connector Position Assurance

CATALOG
CONTACT US
Product Numbers by Series
  • Connector Type
  • Plug, Receptacle, Contact
  • Parts
  • Cable Assembly
  • No
  • Industry Standard
  • Safety Standards
  • Number of Positions
  • 3
  • Rated Current
  • 10.0 A
  • Rated Current other
  • Rated Voltage (AC)
  • AC 60.0, 1000.0 V
  • Rated Voltage (AC) other
  • Rated Voltage (DC)
  • DC 60.0, 1000.0 V
  • Rated Voltage (DC) other
  • Number of Rows (Interface)
  • 1
  • Mounting Pitch
  • 4.5 mm
  • Contact Pitch
  • 4.5 mm
  • Connector Length
  • 15.5, 23.0 mm
  • Connector Width
  • 24.3, 24.5 mm
  • Connector Height
  • 11.2, 12.3 mm
  • Mounting Style
  • SMT
  • Mounting Side
  • PCB Stabilizing Feature
  • Staggered Lead
  • Recommended PCB Thickness
  • 1.6 ｍｍ Max.
  • Connector Orientation
  • Straight, Right angle
  • Mating/Unmating Cycles
  • 30
  • Contact Plating
  • Tin
  • Plating Thickness
  • Housing Color
  • Black
  • Wire Termination Method
  • Crimping
  • Recommended Wire Type
  • Discrete wire
  • Recommended Min. Wire Size (AWG)
  • 18
  • Recommended Max. Wire Size (AWG)
  • 16
  • Recommended Min. Wire Size (mm²)
  • 0.75 mm²
  • Recommended Max. Wire Size (mm²)
  • 1.25 mm²
  • Applicable FPC Cable Thickness (mm)
  • Operating Temperature Max.
  • 125 ℃
  • Operating Temperature Min.
  • -40 ℃
  • Panel Mounting Style
  • Mounting direction
  • Floating Range(XY)(mm)
  • Effective Mating Length(Z)(mm)
  • Connector Type Details

Major Applications/Product Categories

Automotive Connectors

List of Connectors (Specification Sheet, 2D drawings, 3D models, Distributor inventory)

In cases where the application will demand a high level of reliability, such as automotive, please contact a company representative for further information.
