FH67 시리즈 추천
0.5mm 피치, 높이 5.2mm 수직 접속, 원 액션 록 2점 접점, 125℃ 대응
특징

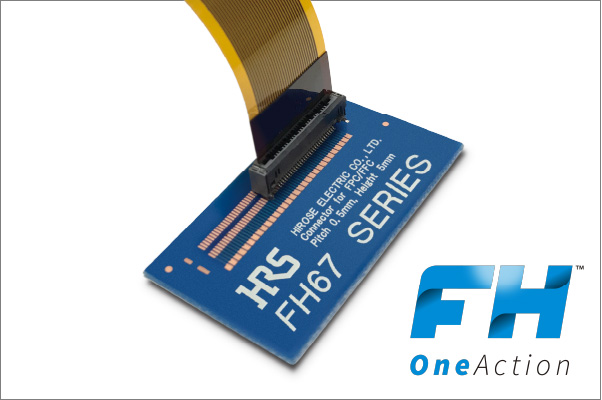

0.5mm Pitch, 3.57mm depth One Action Lock, Vertical connection FPC/FFC/Shield FFC connector
2. Two-point contact prevents contact failure by dust
3. Supports FPC/FFC/Shield FFC
4. High FPC retention force
5. Visual inspection on the mated status of FPC/FFC is possible
6. Environmental
FPC/FFC Connector Select Map
Hirose provides a wide variety of FPC connectors (FPC/FFC connectors), including low profile, narrow pitch and robust variations.
Use this web page to find your ideal connector based on size, transmission standard or product features.

[Special Page] One Action FPC/FFC Connector One Action FH™
Unlike the conventional connection process of opening the actuator, inserting the FPC/FFC and then closing the actuator, connection is completed by just inserting the FPC/FFC with One Action FH. The work time and the number of operation steps are reduced to 1/3rd for a significant reduction in man-hours.

주요 사양
- 커넥터 형태
- 리셉터클
- 실장 Pitch
- 0.5 mm
- 본체 길이 (Pitch 방향)
- 11.08, 16.08, 21.08, 26.08 mm
- 제품 높이
- 5.2 mm
- 제품 폭
- 3.57 mm
- 접점 위치
- 수직타입
- ZIF/Non-ZIF/LIF
- 적합 FFC/FPC
- FPC/FFC
- FPC/FFC 삽입방향
- 수직
- Actuator 방향
- 핀수
- 10, 20, 30, 40
- 기타 핀수
- 접점부 Pitch
- 0.5 mm
- 열 수 (실장부)
- 1
- 전송 규격
- 전송 속도
- 사용온도범위 (Max.)
- 125 ℃
- 사용온도범위 (Min.)
- -55 ℃
- 정격전압 (AC)
- AC 50.0 V
- 정격전압 (DC)
- DC 50.0 V
- 정격전류
- 0.5 A
다큐먼트
차재 용도 등의 높은 신뢰성이 요구되는 기기 적용에 대한 검토 시에는 당사로 문의바랍니다.
