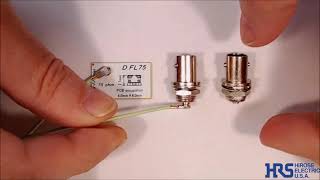

D.FL75 série recommandé
75Ω Micro Coaxial Connector Supporting 12G-SDI(75Ω, up to 12GHz)
Caractéristiques
75Ω Micro Coaxial Connector Supporting 12G-SDI(75Ω, up to 12GHz)
1. Compact 75Ω Coaxial Connector
2. High impedance matching
High frequency compatible from 0 to 12GHz
3. Terminated with 75Ω, ultra-fine coaxial cable
4. Suitable for 12G-SDI broadcasting and video equipment
When used with the BNC(75) series plug, 75Ω system lines are maintained from interface connection to the internal wiring systems.
5. Supports automatic mounting
6. Easy mating
7. Simple unmating process
8. Environmental Compatibility
◆Halogen
Free Chlorine and bromine above the standard values are not used for receptacle and plug harnesses.
*As defined by IEC61249-2-21 Br-900 ppm maximum, Cl-900 ppm maximum, Cl+Br combined-1,500 ppm maximum
12G-SDI Compatible [D.FL75 Series] feature page
The "D.FL75" Series was developed in response to the 12G-SDI standard. D.FL75 improves board design freedom and reduces design time for internal wiring.

Comprehensive Solutions for 4K/8K Image Devices
Hirose Electric offers comprehensive solutions for transmitting ultra-high-definition video data at high speeds. Here we would like to introduce some examples of what our solutions can be applied to.

Spécifications
TABLEAU FONCTIONNEL- Type de connecteur
- Connecteur male, Connecteur femelle, Adaptateur
- Composants
- Type générique
- Norme industrielle
- Etanche
- Assemblage du câble
- Non, Oui
- Longueur du câble
- 50, 80, 100, 110, 120, 130, 140, 150, 160, 170, 180, 190, 200, 300, 400, 500, 600, 700, 800, 900, 1000 mm
- Impédance caractéristique
- 75.0 Ω
- Fréquence (Max.)
- 12.0 GHz
- ROS (V.S.W.R.)
- 1.5 Max.
- Nombre de voies
- Cycles d'accouplement/
désaccouplement - 20
- Type de montage
- SMT
- Orientation du connecteur
- Droit, Angle droit
- Traitement de surface du contact central
- doré
- Traitement de surface du contact externe
- doré
- Type de câble coaxial recommandé
- Diamètre extérieur du câble
- 1.5 mm
- Méthode de raccordement du fil
- Sertissage
- Diamètre maximum de l'isolation
- Diamètre minimal de l'isolation
- Diamètre du blindage
- Diamètre du conducteur central
- Remarques sur les câbles recommandés
- Température de fonctionnement (Max.)
- 105 ℃
- Température de fonctionnement (Min.)
- -40 ℃
- Couleur du câble
- Green
- Connecteurs avec face d'entrée de type 1
- Connecteurs avec face d'entrée de type 2
- Atténuation
Document
Dans les cas où l'application exigera un niveau de fiabilité élevé, tel que l'automobile, veuillez contacter un représentant de l'entreprise pour plus d'informations.
